Description

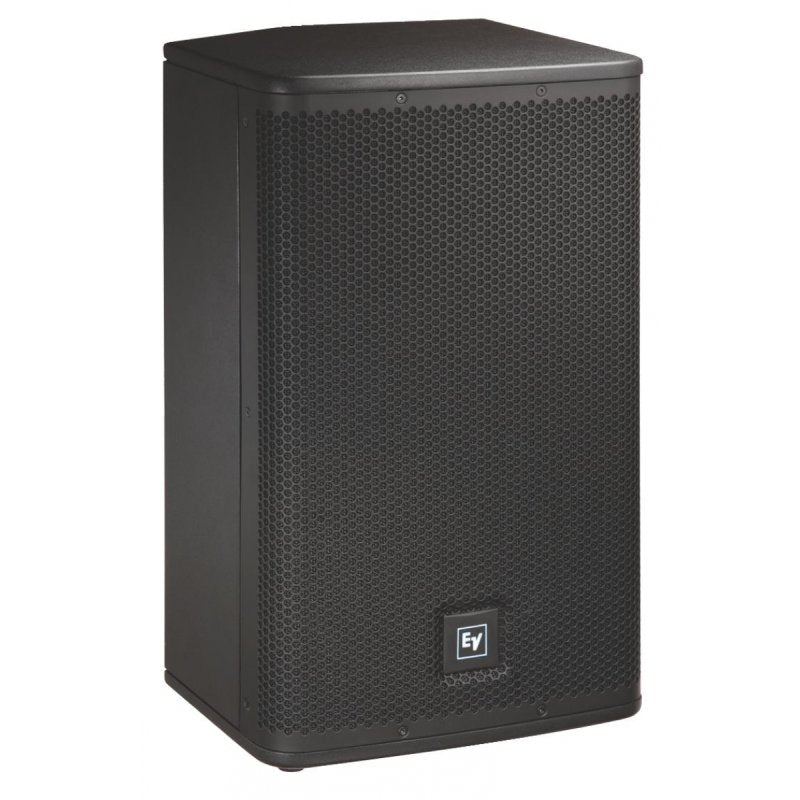

Clear, powerful, and musical, the Live X series was born to command the stage for professional music performance. Available in both powered and passive versions, Live X loudspeakers offer top-quality components in remarkably affordable configurations that put the EV-quality experience within reach for artists, engineers, and live-sound businesses. Designed for a wide range of portable sound applications, Live X loudspeakers are housed in hardy stackable enclosures of solid wood, making them lighter than comparable-quality composite or plastic boxes and therefore easier to load, transport, and set up. With high output, extended frequency range, and high sensitivity, Live X loudspeakers are clean, flat, and hot, making music of all kinds sound its best. The Live X series is serious gear for serious sound.
Speaker Type: Full-range, two-way, wedges
Power Rating: 1000 W
Frequency Response (-3 dB): 85 - 17000 Hz
Frequency Response (-10 dB) 50 - 20000 Hz
Max. SPL/1m (calc): 132 dB
Coverage (Nominal -6 dB) H: 90 °
Coverage (Nominal -6 dB) V: 50 °
LF Transducer: (1) EVS-12K, 305mm (12") Woofer
HF Transducer: DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver
Connector Type: (2) XLR/TRS Combo Jacks, (1) Stereo RCA, (1) XLR Link Output
Weight Net: 16.8 kg (37.04 lbs)
- ELX112 performance with self-amplification
- 50 Hz – 20 kHz frequency range
- Lightweight, cool-running 1000 W Class D amp
- Biamped with 24 dB/octave crossover
- Transducer protection
- Bypassable high-pass for external subwoofer

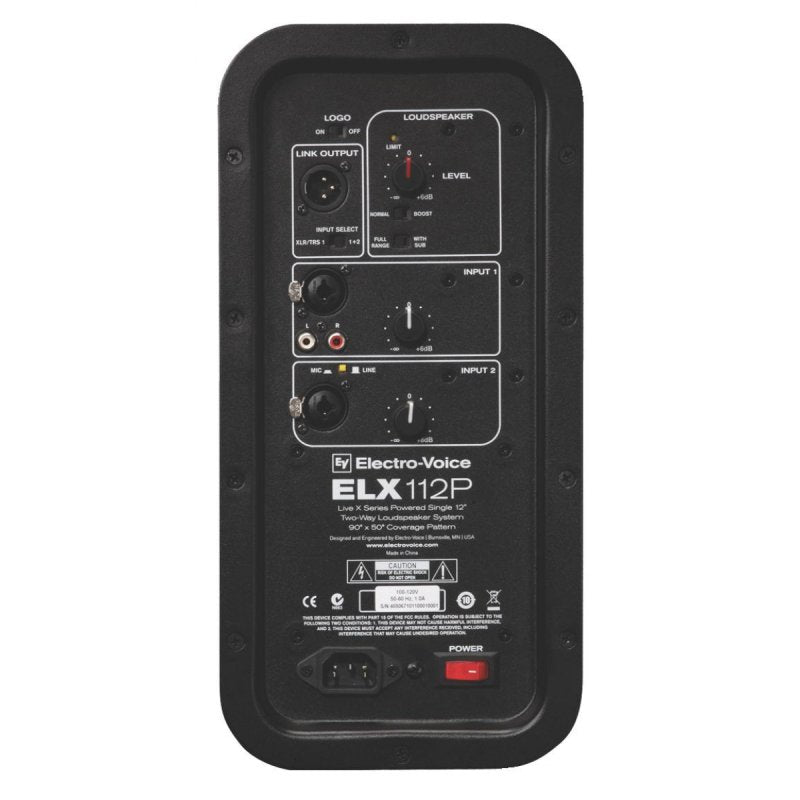

- XLR, TRS, and RCA connections
- Versatile gain, mixing, and processing controls
- Pre- or post-mix parallel outputs
