Description

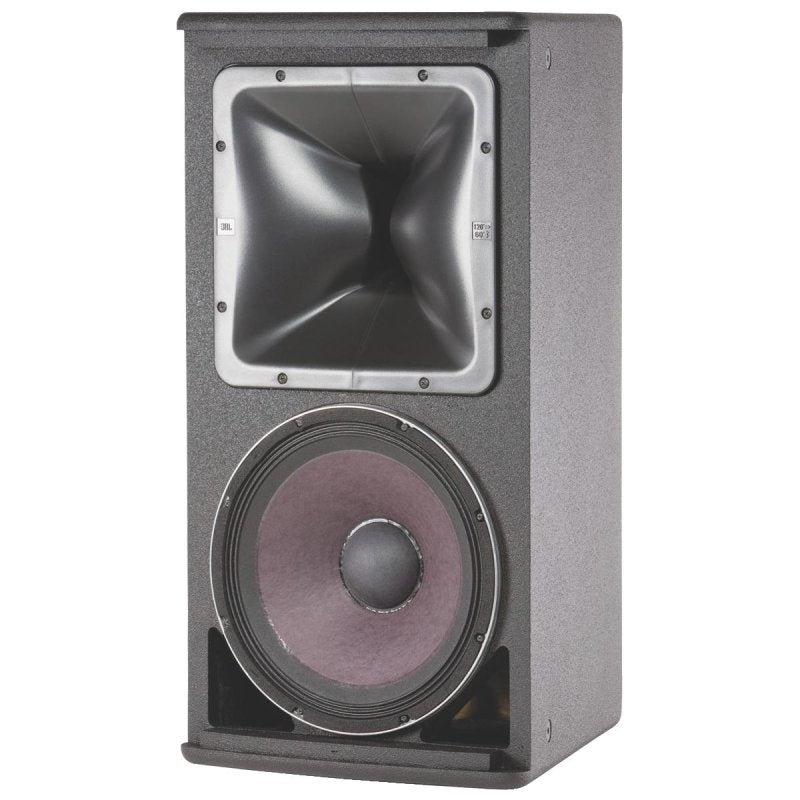

The AM7215/26 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent 120° x 60° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Wellcontrolled off-axis response enhances arrayability.
Frequency Range ( –10 dB) : 34 Hz - 20 kHz
Frequency Response ( ± 3 dB) : 40 Hz - 18 kHz
Coverage : 120° x 60° horn
LF Driver : 2265H
HF Driver : 2432H
System Type : 15" Two - Way, High Power, Full - Range
Dimensions (H x W x D) : 781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in)
Weight : 27.2 kg (60 lb)
Directivity Factor (Q) : 8.6
Directivity Index (DI) : 9.3 dB
Crossover Modes : Bi-amp/Passive switchable
Passive Crossover Frequency : 1.4 kHz
Transducer Power Rating (AES) : LF: 1000 W (4000 W peak), 2 hr
750 W (3000 W peak), 100 hrs
HF: 100 W (400 W peak), 2 hrs
Long-Term System Power Rating (IEC) : Passive mode: 600 W (2400 W peak), 100 hrs
Maximum SPL (dB-SPL, 1W @ 1m) : Bi-amp mode:
LF: 126 dB-SPL cont avg (132 dB peak)
HF: 131 dB-SPL cont avg (137 dB peak)
Passive mode:
123 dB-SPL cont avg (129 dB peak)
System Sensitivity (1W @ 1m) : Passive mode: 96 dB SPL
Nominal Impedance : 8 ohms
- 262H-1 Differential Drive® Low-Frequency Driver
- 2408H-1 High-Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
