Description

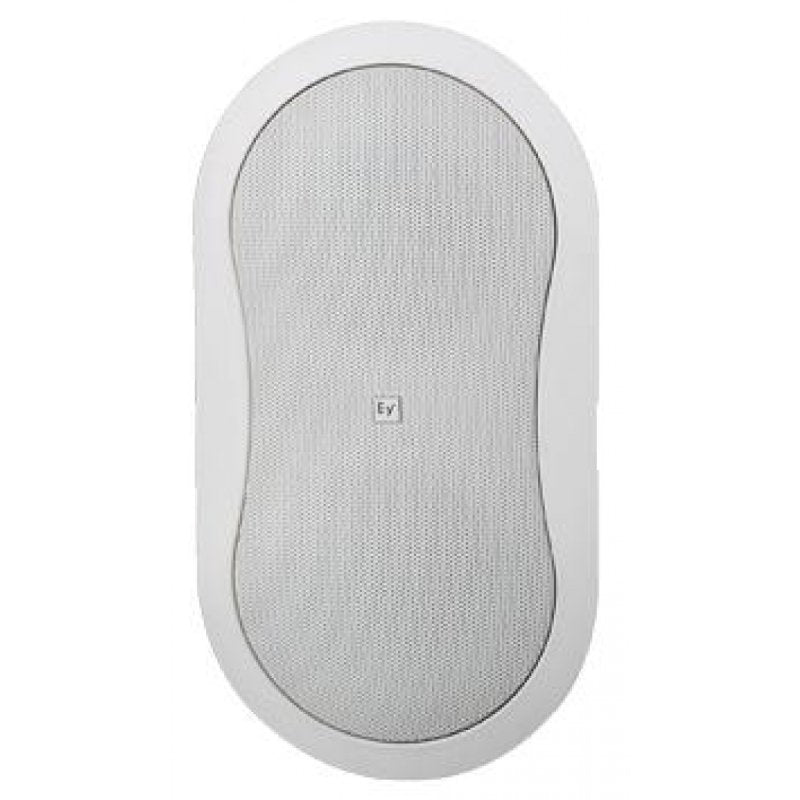

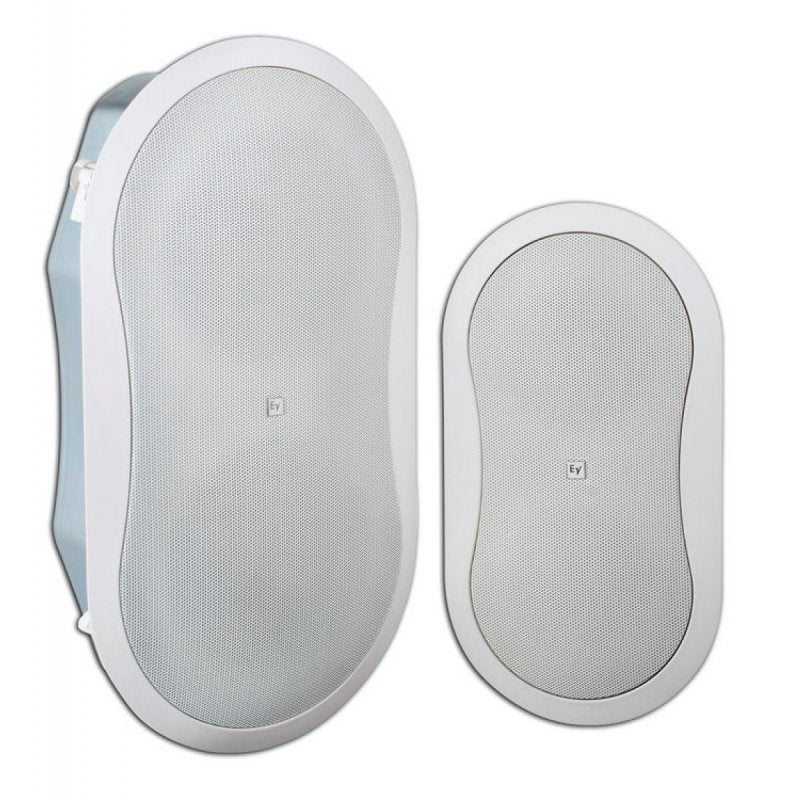

EVID FM models feature an attractive design and compact profile. They provide excellent performance for small and mid sized rooms. Both models employ a passive radiator and one inch tweeter to provide high quality sound in a shallow area. The fully sealed enclosures guarantee consistent performance in any installation and provide superior sound isolation from adjacent rooms. Both models are capable of 8 Ohm and 70V/100V operation, and feature four point quick mounting tabs for fast installation.
Transformer Taps: 1.75, 3.75, 7.5, 15, 30 at 70 v
Frequency Response ( 10 dB): 52 20000 Hz
Sensitivity: 1 W/1 m 87 dB
LF Transducer: 4 inch with 4 inch passive radiator
HF Transducer: 1 inch Titanium dome tweeter
Enclosure Material: Zinc Plated Metal
Height: 350 mm (13.78")
Width: 188.3 mm (7.41")
Depth: 95.6 mm (3.76")
Weight Net: 2.9 kg (6.39 lbs)
- Fully sealed, InWall speaker system package
- 6 inch woofer coupled with a 6 inch passive radiator
- Commercial Sound/Life Safety
