Description

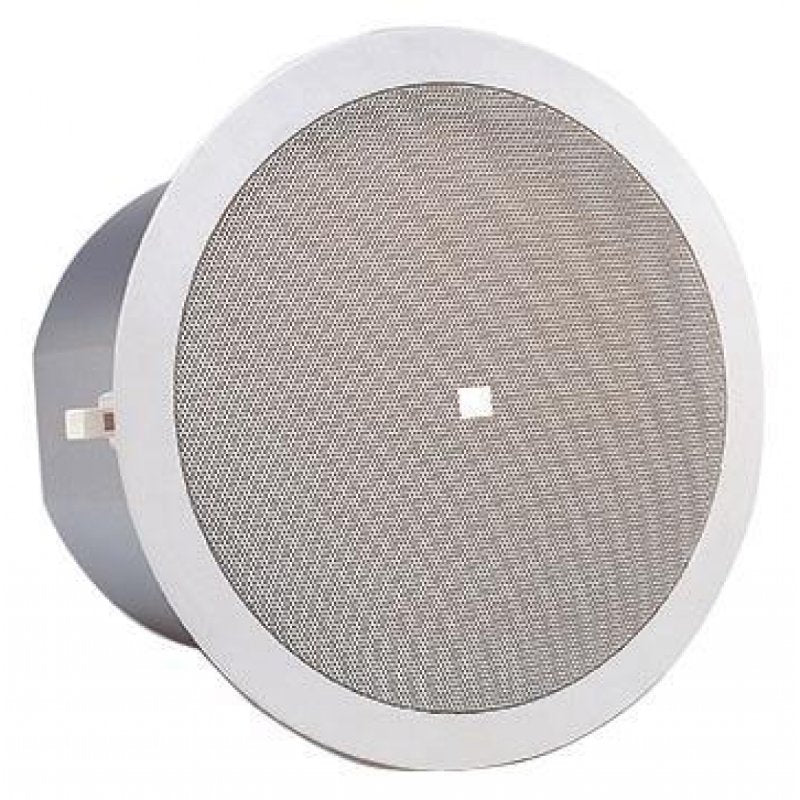

The Control 26-DT is a compact ceiling speaker assembly configured to install into standard ceiling backcans designed for 200 mm (8") drivers.
Frequency Range : 70 Hz - 20 kHz
Transformer Taps : 70 V: 60 W, 30 W, 15 W, & 7.5 W 100 V: 60 W, 30 W, & 15 W
Frequency Response : 95 Hz – 18 kHz
( ± 3 dB)
Nominal Coverage Angle : 90°
Crossover Frequency : 3.5 kHz
Directivity Index (DI) : 7.6 dB
Directivity Factor (Q) : 8.8 dB
Minimum Impedance : 80 ohms @ 247 Hz (60 W tap), 159 ohms, (30 W tap), 318 ohms, (15 W tap), 635 ohms, (7.5 W tap)
Rated Maximum SPL : 106 dB SPL @ 1m (3.3 ft)
Low Frequency : 165 mm (6.5 in) polypropylene-coated, 1 in voice coil on aluminum former.
Adapter flange to fit standard 6.5 in mounting.
High Frequency : 19 mm (.75 in) titanium coated polyester
Mounting Points : 4 screw holes at 194 mm (7.625 in) diameter on center
Terminations : Screw locking barrier strip
Safety Agency Rating : In accordance with IEC60849 / EN60849.
Dimensions (H x Dia.) : 120 mm x 200 mm (4.72 in x 7.87 in)
Net Weight (ea) : 1.9 kg (4.2 lb)
Shipping Weight (pair) : 4 kg (8.8 lb)
- Use instead of standard 8" driver. Fits standard backcans for 8" speakers.
- Comes complete with transducer, network and transformer
- Advanced crossover network provides natural sound and even coverage throughout listening area
- 60 W transformer for 70 V or 100 V distributed speaker lines
- Coaxial woofer with long-life butyl rubber surround and titanium coated tweeter
