Description

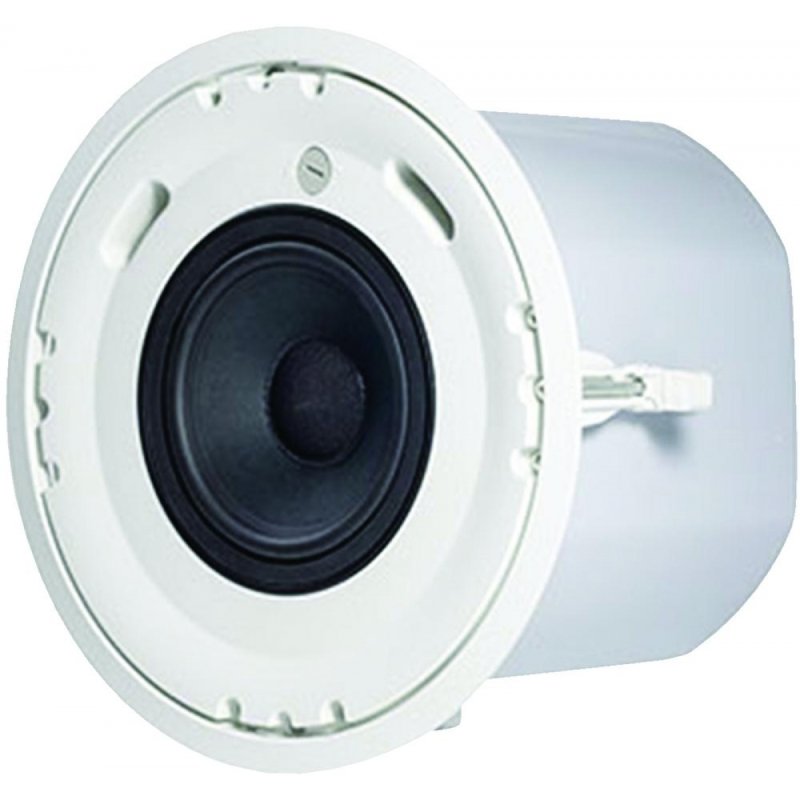

The JBL Professional Control 226C/T is a premium in-ceiling professional loudspeaker designed for applications requiring superior quality sound in ceiling mount applications.
Frequency Range (-10 dB) : 47 Hz - 19 kHz
Power Capacity : 150 W on 8-ohm setting
Tap Settings : 68W, 34W, 17W (plus 8.5W at 70V)
Sensitivity : 90 dB
95 dB computed for competitive comparison
Coverage : 120 degrees
Low Frequency : 165 mm (6.5 in) woofer Kevlar reinforced cone
High Frequency : 25 mm (1 in) exit compression driver
Dimensions (H x Dia) : Ø 330 mm (13 in) round baffle x depth from back of baffle of 246 mm (9.7 in)
Net Weight (ea) : 9.1 kg (20.0 lb)
Shipping Weight (pair) : 23.9 kg (52.5 lb)
- Consistent 120° broadband pattern control for exceptional coverage
- Coaxial design featuring: Kevlar-reinforced 165 mm (6.5 in) woofer. 25 mm (1 in) compression driver.
- Extraordinary clarity for speech and vocals with extended frequency response for music
- Advanced high-slope crossover network for constant coverage and smooth, natural midrange
- 150 Watts Power Handling
- Integrated back can with clean, contemporary grille
