Description

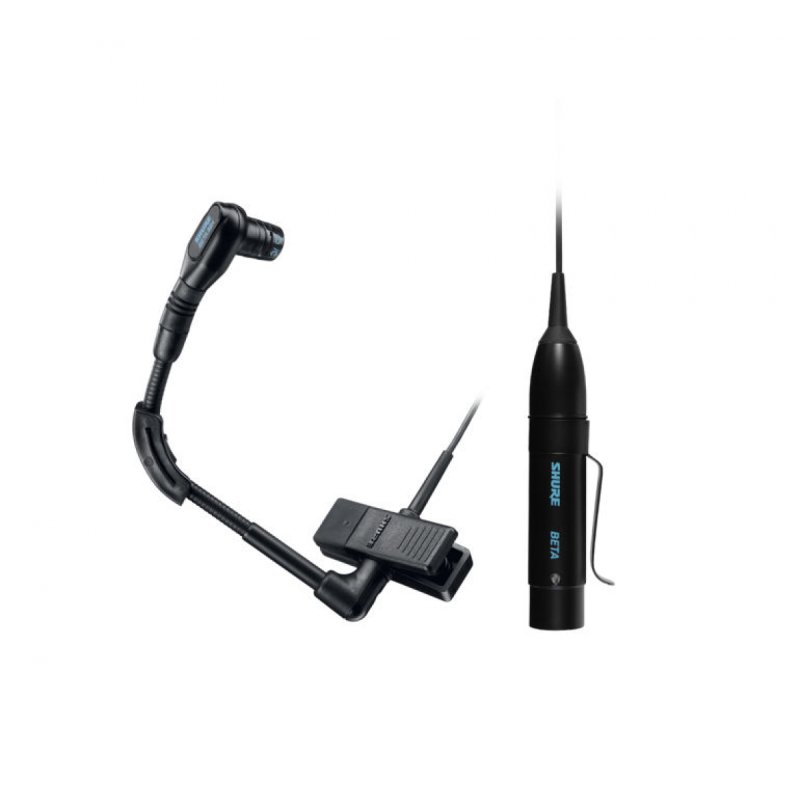

The Beta 98H/C�is a premium cardioid condenser instrument microphones that clamps onto the bell of wind instruments or onto the rim of percussion instruments. The integrated gooseneck and ratcheting swivel joint allows the mic to be easily positioned and secured, and an isolation shock-mount reduces the transmission of instrument 'key noise' and other mechanical noise. A gooseneck angle brace is included to provide better retention of the microphone placement during more active performances.
Type
Condenser (electret bias)
Frequency Response
20 to 20,000 Hz
Polar Pattern
Unidirectional (cardioid)
Output Impedance
Rated at 150.0 ohms (actual) Recommended minimum load impedance: 1 kilohm. May be used with loads as low as 150 ohms with reduced clipping level.
Output Level (0 dB = 1 volt per Pascal)
Open Circuit Voltage: -56 dB (1.6 mV)
Output Clipping Level (at 1kHz, THD < 1%)
2.5 kilohm load: 11 dBV (3.5 V)
1.0 kilohm load: 3 dBV (1.4 V)
Maximum SPL
2.5 kilohm load: 163 dB
1.0 kilohm load: 155 dB
Dynamic Range (maximum SPL to A-weighted noise level)
132 dB (2.5 kilohm load)
Signal-to-noise ratio
63 dB at 94 dB SPL (IEC 651)
Polarity
Positive pressure on microphone diaphragm produces positive voltage on pin 2 relative to pin 3 of preamplifier output connector.
Recommended Operating Voltage
11 to 52 Vdc Phantom
Environmental Conditions
Operating temperatures: -7 degrees C to 49 degrees C (20 degrees F to 120 degrees F)
Storage temperatures: 29 degrees C to +74 degrees C (-20 degrees F to 165 degrees F)
Relative Humidity: 0 to 95%
Net Weight
Microphone w/cable and preamplifier: 156 g (5.5 oz.)
- Compact, lightweight construction provides a low degree of visibility
- Gooseneck, ratcheting swivel joint and gooseneck angle brace allow for optimum placement and fixed positioning
- High maximum sound pressure level (SPL) enables handling of the extreme demands of brass, woodwind and percussion instruments
- Transformerless preamplifier circuitry which improves linearity across the full frequency range
- Pickup pattern provides high gain-before-feedback and excellent rejection of unwanted noise
- Features a 3 m (10 ft.) high-flex cable with attached preamplifier (XLR connection)
- Tailored frequency response for open, natural sound reproduction
- Shure ruggedness and reliability
- Interchangeable replacement cartridges: RPM108 : Cardioid RPM110 : Supercardioid
