Description

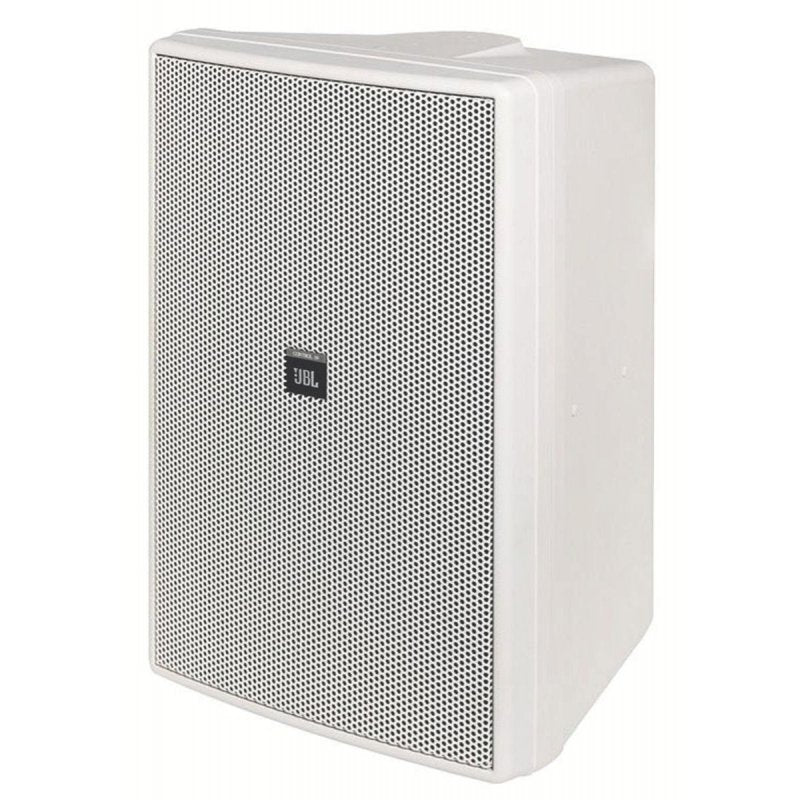

The Control® 25AV-LS built on the same platform as our popular Control 25AV and is UL 1480 UUMW Listed for use in fire alarm and/or emergency communication systems.
Freq. Range (-10 dB) : 90 Hz - 20 kHz
Power Capacity : 200 Watts Continuous Program Power (at 8 ohm bypass mode)
100 Watts Continuous Pink Noise (at 8 ohm bypass mode)
60 Watts (at 60W tap setting)
Transformer Taps : 60W, 30W, 15W
(& 7.5W @ 70V)
Nominal Sensitivity : 87dB, 1W at 1m (1kHz–10kHz, ave., at 8 ohm bypass mode);
71 dB, 1W at 4m per EN54-24 (100 Hz – 10 kHz, ave., 60W tap)
Nominal Coverage Angle : 110° x 85° (1kHz to 16kHz)
Directivity Factor (Q) : 4.8 (500 Hz to 4kHz)
Directivity Index (DI) : 107 dB @ 1 m (3.3 ft) average, 113 dB peak
Termination : Captive screw-down terminals, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug, plus bare wire up to 12 AWG (2.5 mm)
Cabinet Material : ABS, (materials rated UL94-5VA)
Grille : Aluminum with polyester powder coating
Environmental : Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, IEC 529 IP-x5 splashproof rating
afety Agency : UL1480-UUMW Listed, EN54-24 certified, NFPA90, NFPA70A, and in accordance with the requirements of IEC60849/EN60849
Dimensions (H x W x D) : 236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in)
Net Weight : 3.8 kg (8.4 lbs) ea
Shipping Weight : 8.6 kg (19 lbs) pair
Included Accessories : 1 pc MTC-PC2 input panel cover, Invisiball mounting base, 6 mm x 100 mm Invisiball hex wrench
- Video shielded for use near video monitors
- Extremely smooth frequency response
- UL 1480 UUMW Listed for Use in Fire Alarm and/or Emergency Communication Systems; EN54-24 certified
- 60 W transformer for 70 V or 100 V lines, with 8 ohms thru
- SonicGuard™ overload protection
- 130 mm (5.25 in) polypropylene coated woofer, 10 mm (.75 in) titanium coated horn-loaded tweeter
- Includes InvisiBall® mounting hardware and sealed input panel cover
- Screw-down input terminals
- Aluminum Grille with Polyester Powder Coating for enduring reliability
- 105° x 85° high frequency horn
