Description

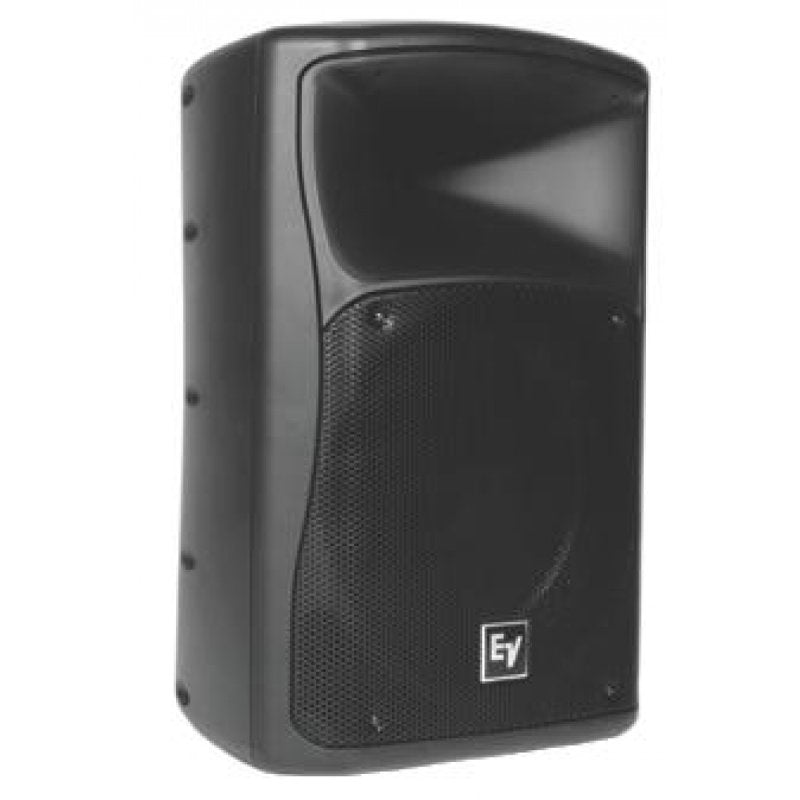

Zx4 is designed mainly for portable applications such as performing artist, musicians, and small bands. And with an integral pole-mount, the Zx4 is ready for any main mix application.
Chassis Size: 381 mm (15")
Color: Black
Input Connections: Parallel Neutrik® NL4
Speaker Type: Fullrange
Speaker Type: Mid-High
Speaker Type: Two-Way
Speaker Type: Wedges
Frequency Response (-3 dB): 60 - 20000 Hz
Frequency Response (-10 dB): 42 - 20000 Hz
Internal Crossover: Yes
Sensitivity 1 W/1 m: 100 dB
Max. SPL/1m (calc): 132 dB
Coverage (Nominal -6 dB) H: 90 °
Coverage (Nominal -6 dB) V: 50 °
System Power Handling: 400 Watts
LF Transducer: EVS15SF
HF Transducer: DH3
Crossover Frequency: 1500 Hz
Nominal Impedance (Passive): 8 ?
Minimum Impedance: 6.5 ?
Flying: Yes
Outdoor: No
Height: 686 mm (27.01")
Width: 445 mm (17.52")
Depth: 406 mm (15.98")
Weight Net: 20.2 kg (44.53 lbs)
- 15-2-Way with EVS15SF woofer
- DH3 1.25” titanium HF driver
- 400 Watt cont. 1600W Peak
- High sensitivity (100dB)
- Adjustable monitor angles 45° and 55°
- Large Format 90° x 50° EV horn
