Description

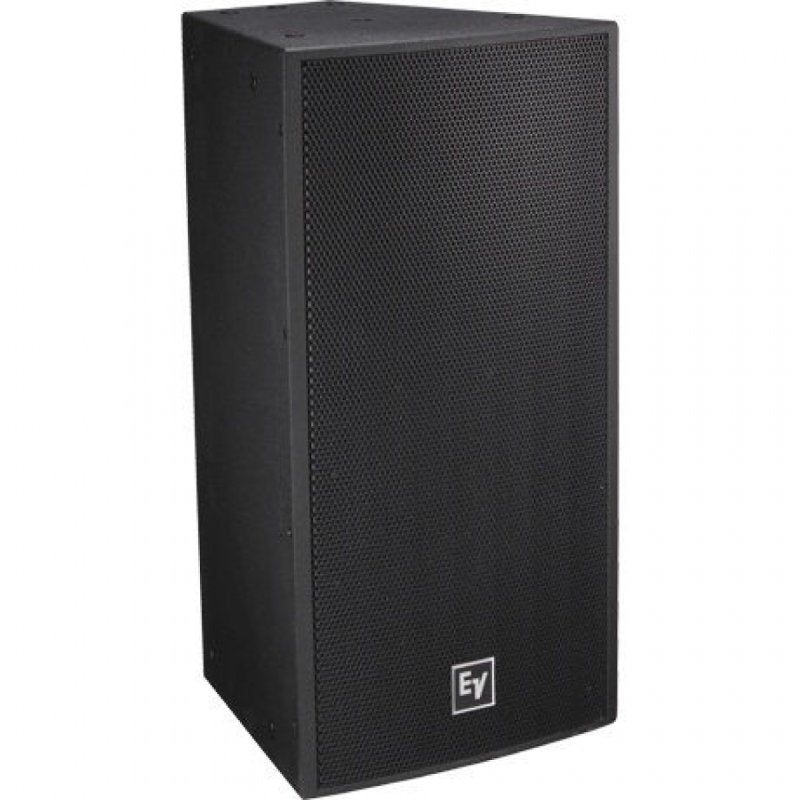

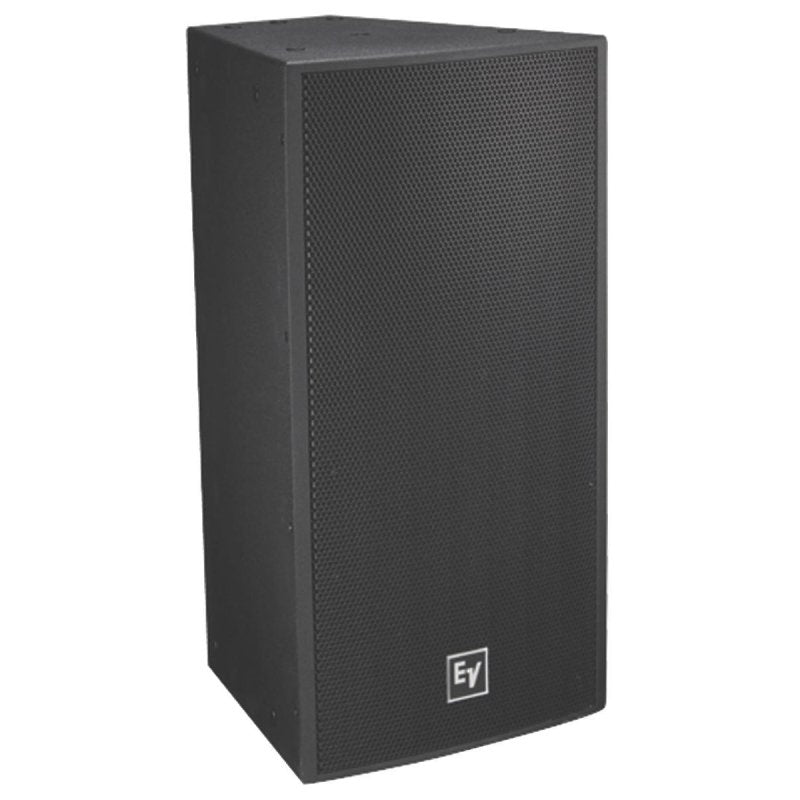

Every EVF trapezoidal enclosure is constructed out of weather resistant birch, and coated with EVCoat for maximum protection from the elements. EVF‘s unique acoustic and rigging designs allow for vertical and horizontal clusters to be built using any combination of loudspeakers from both the entire EVF & EVH Series. With an assortment of full range, low frequency, and subwoofer loudspeakers, the EVF Series provides the tools to maximize the flexibility of system design, no matter what the application and budget. EVF‘s innovative input panels provide the choice of Phoenix type connectors (included in all standard models), or allow the easy addition of a dual NL4 type connector cover plate or gland nut cover plate (for weatherizing applications). An externally accessible jumper also selects passive or active operation, and an available 70.7/100V transformer kit simply mounts to the input panel for use in distributed systems. All features provide the flexibility to manage more venues with less equipment, while quickly and precisely addressing customer requirements.
Environmental Specs: Standard versions: IEC 60529 IP44
Input Connections: Phoenix/Euroblock style screw terminals
Frequency Response ( 3 dB): 58 16000 Hz
Frequency Response ( 10 dB): 49 19000 Hz
Recommended High Pass Frequency: 65 Hz
Sensitivity: 1 W/1 m 98 dB
Max. SPL/1m (calc): 131 dB
Coverage (Nominal 6 dB): H 120 deg
Coverage (Nominal 6 dB): V 60 deg
System Power Handling (Continuous/Program/Peak): 500/1000/2000 Watts
LF Transducer: SMX2121, 12 in (305mm) Driver
HF Transducer: ND2B, 2 in (51 mm) Diaphragm Compression Driver
Crossover Frequency: 1450 Hz
Nominal Impedance (Passive): 8
Minimum Impedance: 6
Enclosure Material: 13 Ply Weather Resistant Birch
Grill Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind
Suspension: (22) M10 Threaded Points
Height: 768.6 mm (30.26")
Width: 406.3 mm (16")
Depth: 413.3 mm (16.27")
Weight Net: 28.6 kg (63.05 lbs)
120deg X 60deg
- Rotatable Constant directivity waveguide
- 2 inch ND2B titanium HF compression driver
- 98 dB sensitivity, 131 dB maximum SPL
- Power handling: 500 W continuous, 2000 W peak
- 120 X 60, EVCOAT
