Description

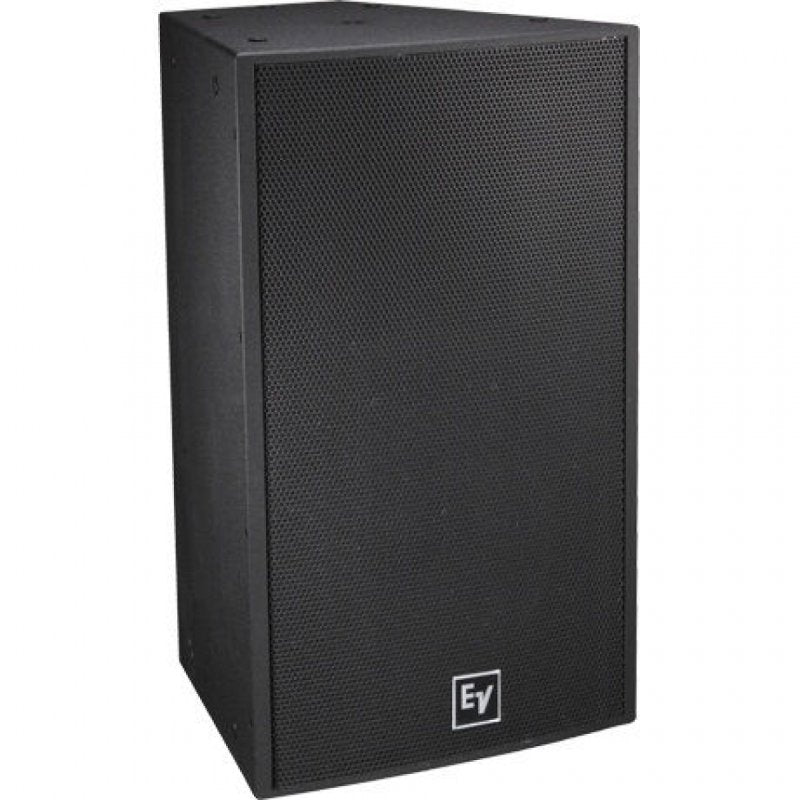

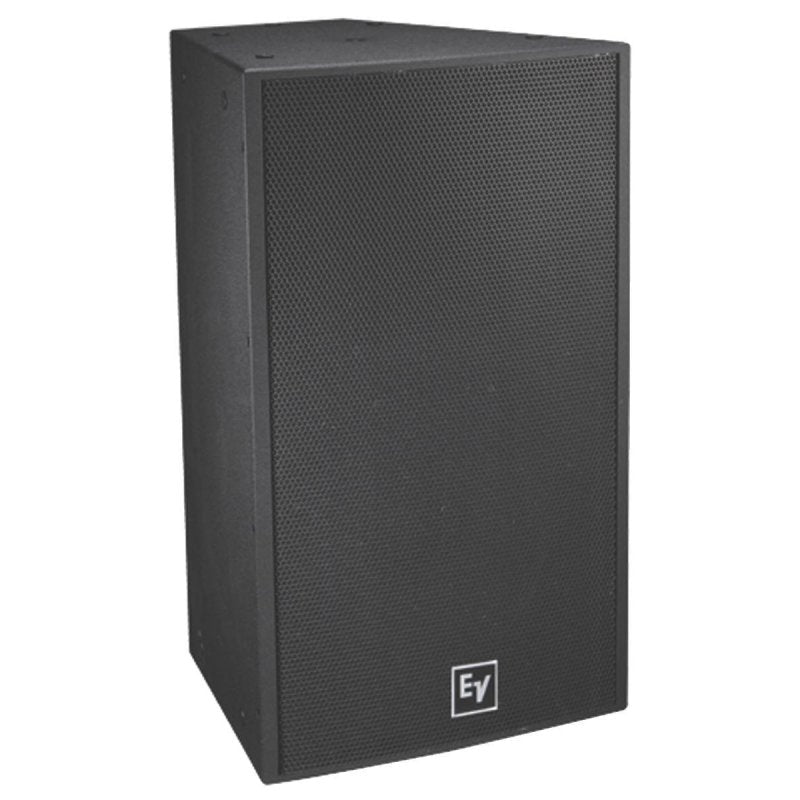

The EVF 1151S single 15 inch bass system is designed to work as a low frequency reinforcement unit for EVF Series products, with equal footprint as the full range models, allows for perfect clustering in vertical and Horizontal groupings.
Coverage (Nominal 6 dB): Omnidirectional in normal operating range
Input Connections: Phoenix/Euroblock style screw terminals
Internal Passive Low Pass Filter: 100 Hz 12 dB per octave
Frequency Response ( 3 dB): 67 95 Hz
Frequency Response ( 10 dB): 46 124 Hz
Recommended High Pass Frequency: 35 Hz
Sensitivity: 1 W/1 m 103 dB
Max. SPL/1m (calc): 135 dB
System Power Handling (Continuous/Program/Peak): 400, 800, 1600 Watts
LF Transducer: EVS15SB, 15 in (381mm) Driver
Nominal Impedance (Passive): Passive: 4, Biamp: 8
Minimum Impedance: Passive: 3.4, Biamp: 6.4
Enclosure Material: 13 ply weather resistant birch
Grill Standard versions: 16 ga Galvanneal, Powdercoat, with screen behind.
Suspension: (22) M10 Threaded Points (one EBK M10 EVI kit of four forged eyebolts included)
Height: 768.6 mm (30.26")
Width: 470 mm (18.5")
Depth: 467 mm (18.39")
Weight Net: 28.4 kg (62.61 lbs)
EVF 1151S single 15 inch woofer more bass system is design to work as a low frequency reinforcement unit for EVF Series products, with equal footprint as the full range models, allows for perfect clustering in vertical and Horizontal groupings.
- 99 dB sensitivity, 131 dB maximum SPL
- Low distortion EVS15SB woofer
- Power: 400 W continuous, 1600 W peak
- Enhanced bass for installations
