Description

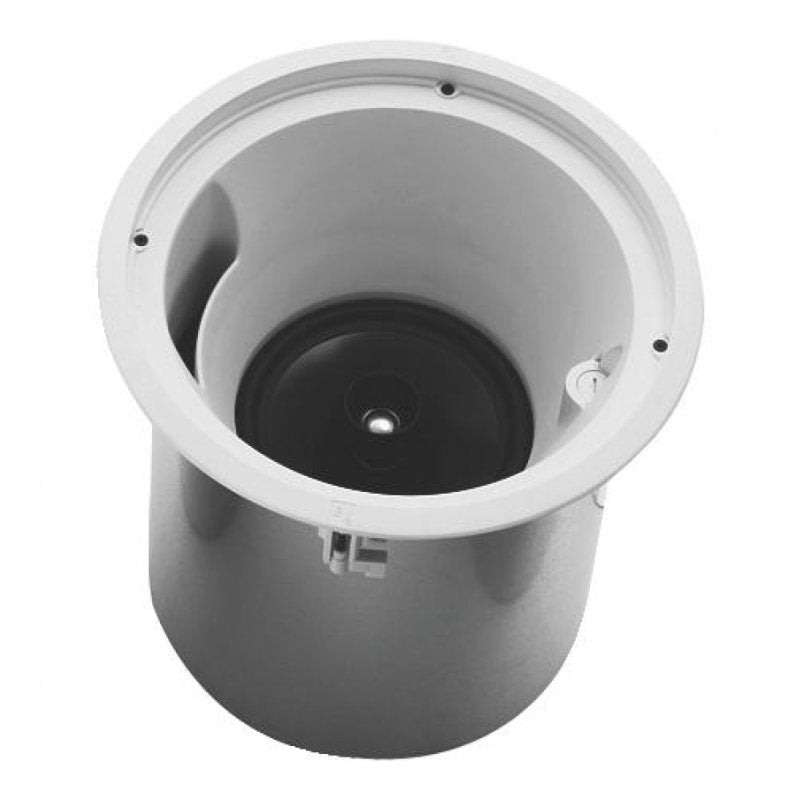

The EVID C8.2HC is a two way, pattern control, ceiling speaker system ideal for high ceiling, reverberant, “problem“ rooms. Its exclusive, ported, waveguide coupled. An 8“ driver provides excellent intelligibility and definition.
Chassis Size: 203.2 mm (8")
Diameter (Max): 320 mm (12.6")
Speaker Type: Ceiling Speakers
Transformer: Yes
Transformer Taps: (7.5 70 V only), 15, 30, 60
Frequency Response ( 10 dB): 50 20000 Hz
Sensitivity 1 W/1 m: 93 dB
Outdoor: No
Height: 303 mm (11.93")
Weight: Net 6 kg (13.23 lbs)
- Designed for Commercial Sound/Life Safety, and other applications
- For use in high ceiling, reverberant problem rooms
- Exclusive ported, wave guide coupled 8 inch driver
- Four point mounting system
