Description

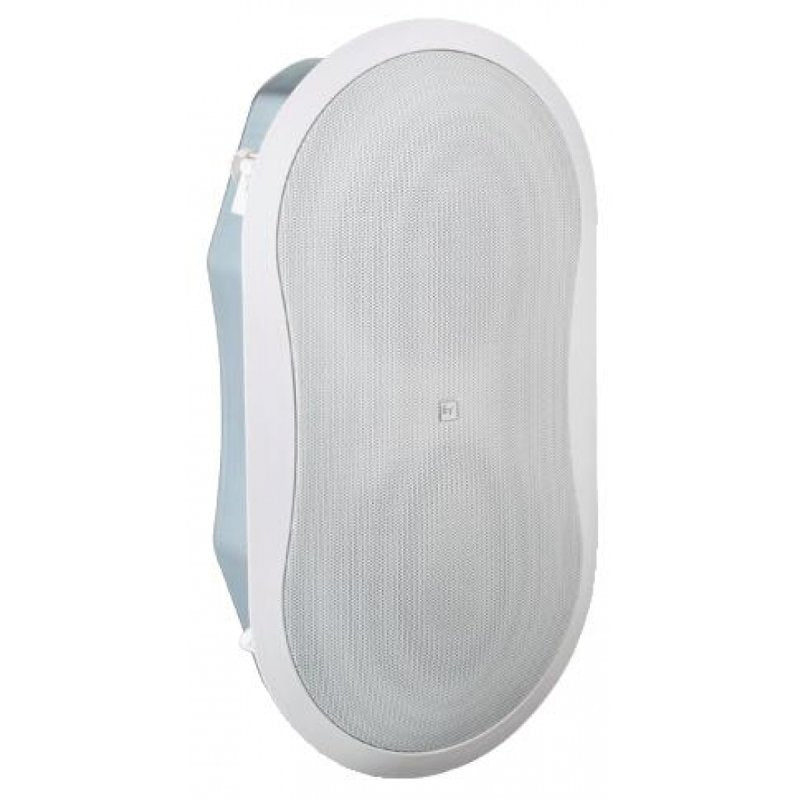

EVID FM models feature an attractive design and compact profile. They provide excellent performance for small and mid sized rooms. Both models employ a passive radiator and one inch tweeter to provide high quality sound in a shallow area. The fully sealed enclosures guarantee consistent performance in any installation and provide superior sound isolation from adjacent rooms. Both models are capable of 8 Ohm and 70V/100V operation, and feature four point quick mounting tabs for fast installation.
Transformer Taps: 7.5, 15, 30, 60 w at 70 v
Frequency Response ( 10 dB): 52 20000 Hz
Sensitivity: 1 W/1 m 90 dB
LF Transducer: 6 inch with 6 inch passive radiator
HF Transducer: 1 inch Titanium dome tweeter
Nominal Impedance (Passive): 8
Enclosure Material: Zinc Plated Metal
Height: 465 mm (18.31")
Width: 256 mm (10.08")
Depth: 100.3 mm (3.95")
Weight Net: 5.8 kg (12.79 lbs)
- Detachable pass thru Phoenix style signal connections simplify installation wiring. Tap selector with 8 ohm / 70 V / 100 V operation.
- Fully sealed, InWall speaker system package
- 6 inch woofer coupled with a 6 inch passive radiator
- Commercial Sound/Life Safety
