Description

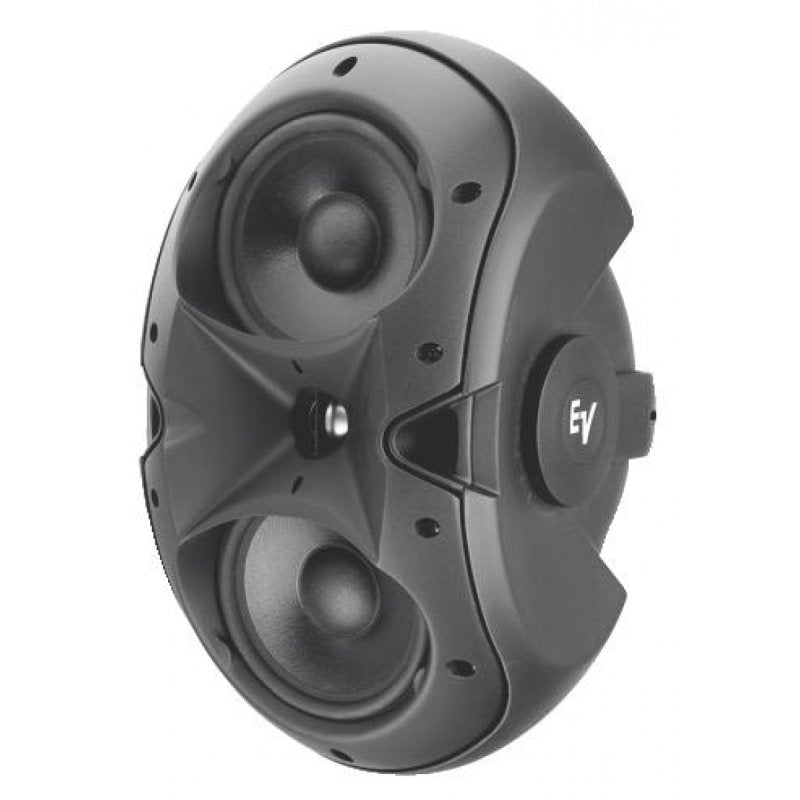

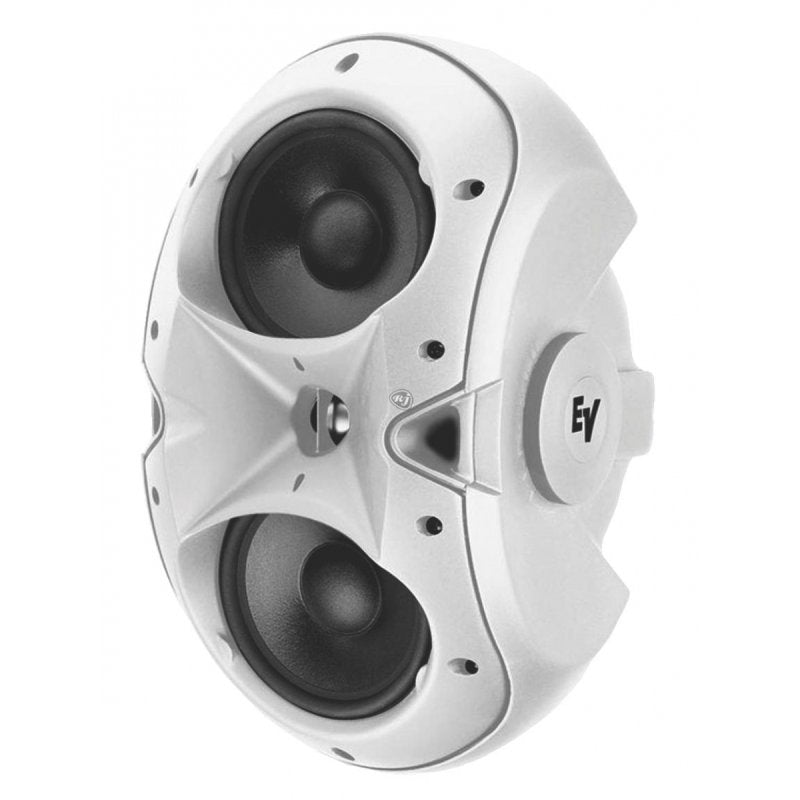

The EVID 6.2 is comprised of dual, 6“, low frequency drivers and a 1“, waveguide. It is perfect for applications that require the capability to fill large spaces with sound. The flexible Strong Arm Mount system provides versatility to accommodate any installation challenge.
Chassis Size: 152.4 mm (6")
Input: Connections Spring Terminal
Speaker Type: Fullrange
Speaker Type: Mid High
Speaker Type: Two Way
Frequency Response ( 10 dB): 62 20000 Hz
Internal Crossover: Yes
Sensitivity: 1 W/1 m 94 dB
Max. SPL/1m (calc): 122 dB
Coverage (Nominal 6 dB) H: 100 deg
Coverage (Nominal 6 dB) V: 80 deg
System Power Handling: 150 Watts
Nominal Impedance (Passive): 8
Minimum Impedance: 6
Outdoor: Yes
Height: 419 mm (16.5")
Width: 228 mm (8.98")
Depth: 298 mm (11.73")
Weight Net: 5.3 kg (11.68 lbs)
- Vented LF enclosure
- HF section features Coherent Coverage Waveguide™ to minimize interference
- Two way, high output full range
- 1” voice coil (titanium diaphragm) with Neodymium magnetic structure
