Description

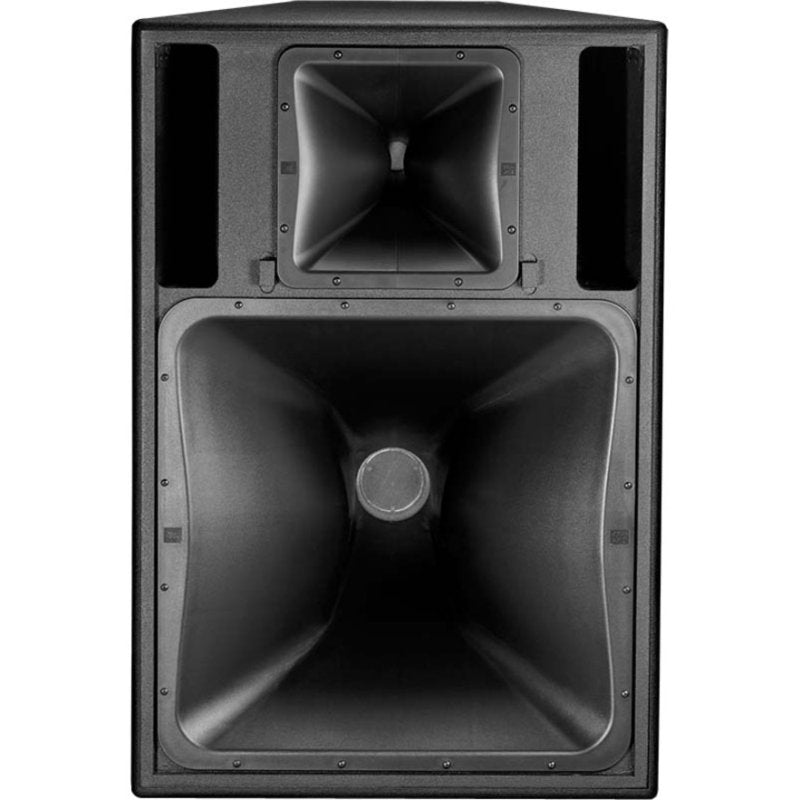

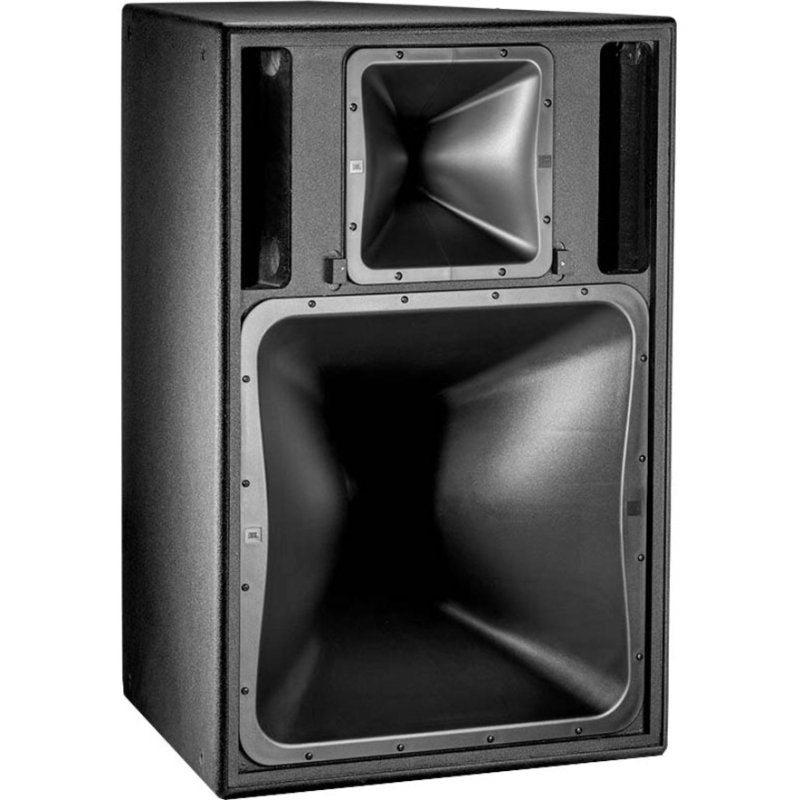

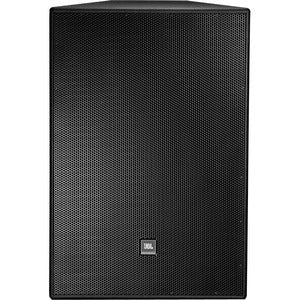

JBL PD6322/66 3-way Speaker - 1200 W RMS - White - 4800 W (PMPO) - 12" - 1.50" Aluminum Tweeter - 12" - 49 Hz to 16 kHz - 8 Ohm
- Two high power 300 mm (12 in) transducer s in a compact slot loaded configuratio n for low frequency extension to 40 Hz.
- High power CMCD™ Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth and improved phase coherence.
- Large format neodymium HF driver provides clear, intelligible high frequency projection.
- Large PT™ Progressive Transition™ waveguides provide consistent 60° x 60° pattern control, low distortion at high SPL levels and smooth frequency response.
- Rotatable mid and high frequency waveguides allow either horizontal or vertical cabinet orientation.
- Sophisticated, steep-slope passive midhigh crossover network with switchable tri-amp/bi-amp crossover modes.
