Description

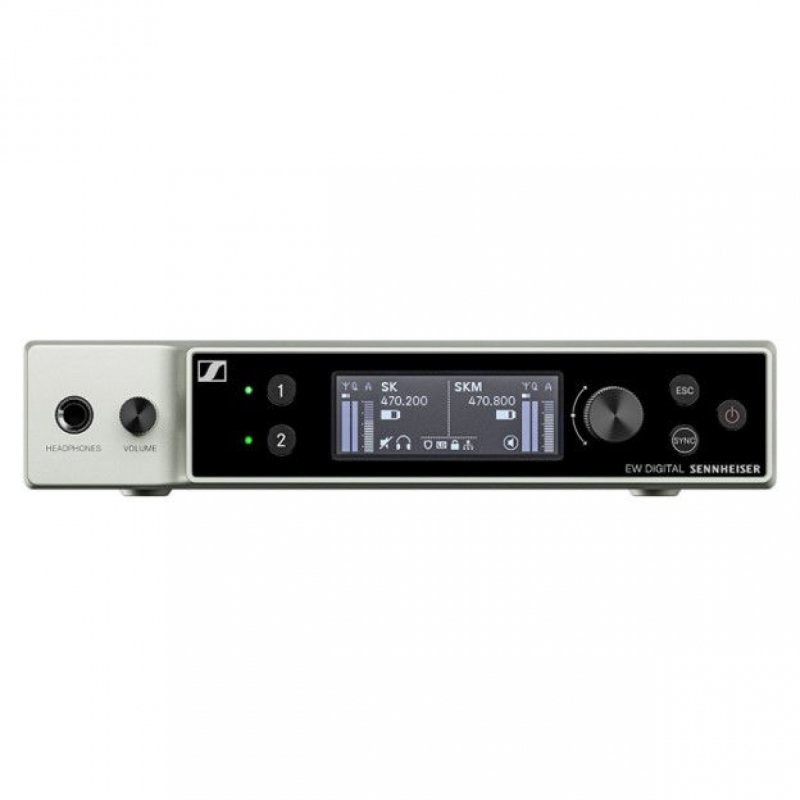

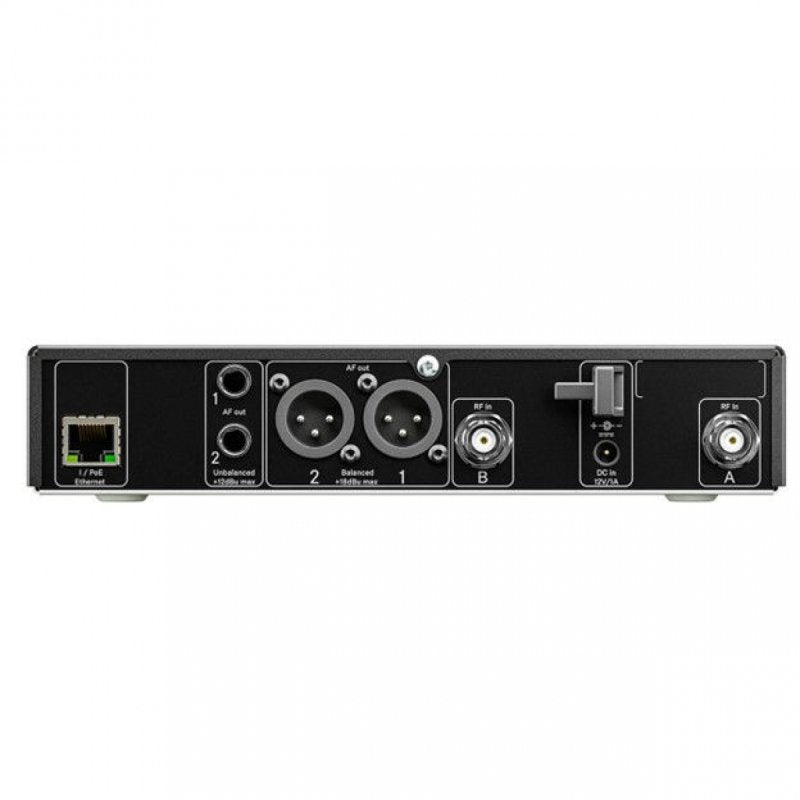

2 channel half-rack (9,5“) non-Dante® receiver. Includes (1) EW-DX EM 2, (2) 1/4 wave antenna, (1) rack mount kit, and (1) EW-D power supply, frequency range: Q1-9 (470.2 - 550 MHz)
- 134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
- AutoScan-feature quickly scans your environment and deploys frequencies with equidistant channel spacing - even without RF knowledge
- Network enabled for expanded remote control with Sennheiser Control Cockpit, Wireless System Manager (WSM - Available in 2023) and 3rd party media control systems via plug-in
- Two-channel digital half rack (9.5") in rugged metal housing
- Up to 88 MHz switching bandwidth
- Low latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
- Remote control via Smart Assist App over Bluetooth® Low Energy (BLE) at distances up to 25 meters (Available in 2023)
- Secure transmission of confidential content using AES 256 encryption
- Equidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600 kHz spacing for up to 146 channels; Link Density (LD) Mode with 300 kHz spacing for up to 293 channels
- Worldwide usage (specific frequencies subject to local RF regulations)
- Power over Ethernet (PoE IEEE 802.3af Class 3)
- Ethernet connectivity (IPv4 and IPv6)
- Link Quality Indicator (LQI) showing the quality of the links separate to the RF levels
- Clear and easy focused user interface with OLED display, jog wheel navigation and control buttons
- Selective headphone output with volume control on front panel
- Extended menu settings such as custom frequency list, selectable sync parameter and walk test
- External PSU 12V/1A
