Description

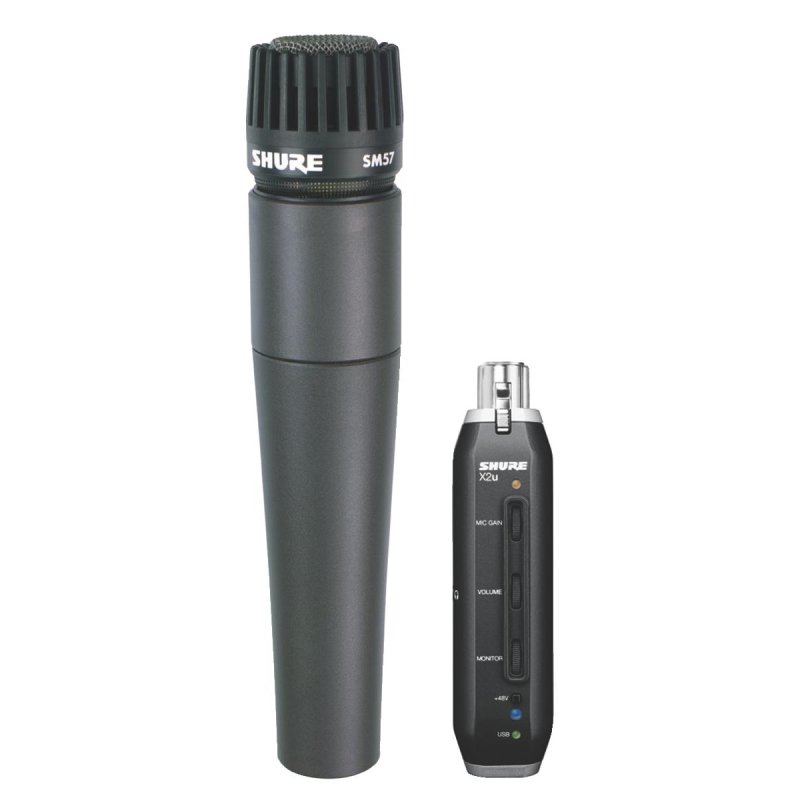

The legendary SM57 cardioid dynamic instrument microphone is now available with the X2u USB Signal Adapter, which features built-in headphone monitoring with zero latency, and easy controls to balance microphone and playback audio.
Digitally record wherever and whenever your computer takes you - just plug and play for better-than-CD quality instrument reproduction.
SM57 Microphone
Type
Dynamic
Frequency Response
40 to 15,000 Hz
Polar Pattern
Unidirectional (cardioid), rotationally symmetrical about microphone axis, uniform with frequency.
Sensitivity (at 1,000 Hz)
Open Circuit Voltage: -56.0 dBV/Pa* (1.6 mV)
*(1 Pa = 94 dB SPL)
Impedance
Rated impedance is 150 ohms (310 ohms actual) for connection to microphone inputs rated low impedance.
Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3.
Connector
Three-pin professional audio connector (male XLR type).
Case
Dark gray, enamel-painted, die-cast steel with a polycarbonate grille and a stainless steel screen.
Net Weight (without cable)
284 grams (10 oz.)
X2u
Frequency Response
20 to 20,000 Hz +/- 1 dB
Power Requirements
USB-powered, 500 mA, maximum
Digital Noise Floor (20 Hz to 20 kHz, A-weighted)
Minimum MIC GAIN setting: -81 dB FS
Maximum MIC GAIN setting: -78 dB FS
Sampling Rate
up to 48 kHz
Bit Depth
16 bit
Peak Signal Indicator (Tri-color)
OFF: -30 dB FS
Green: ?30 to ?12 dB FS
Yellow: ?12 to 0 dB FS
Red: >0 (digital converter clipped)
Adjustable Gain Range
40 dB
Headphone Output
3.5 mm (1/8 inch)
- X2u USB adapter is plug-and-play, compatible with Windows 7, Vista, XP, and Mac OS 10.1 or later
- 16 bit, 48 kHz resolution
- Genuine SM57 vocal microphone
- Integrated pre-amp with Microphone Gain Control allows control of input signal strength
- Zero Latency Monitoring for real-time playback and multi-tracking without disorientation
- Headphone jack for monitoring with 1/8” connectivity
- Monitor Mix Control for blending microphone and playback audio
- 16 bit, up to 48 kHz sample rate for better-than-CD quality audio
