Description

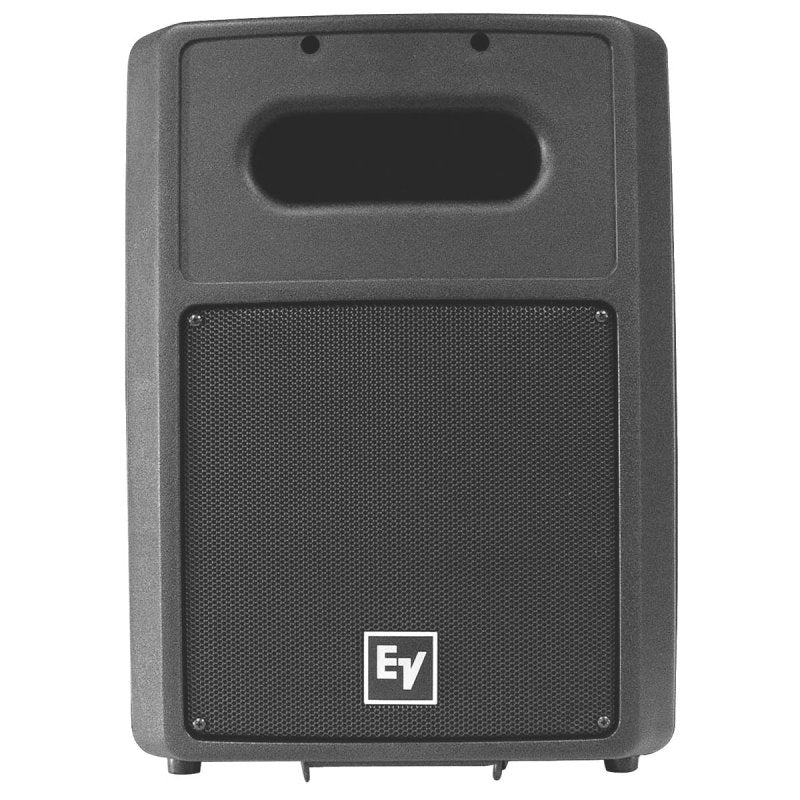

SB122 is quite possibly the smallest, most powerful subwoofer on the planet. Packing 400-watt continuous power handling (1600-watt peak) into a 33 lb (15 kg) package, the SB122 incredible performance for its size.
Axial Sensitivity: (SPL, 1 W @ 1 m) 99 dB Half Space
Chassis Size: 304.8 mm (12")
Coverage: (Nominal -6 dB) Essentially Omni
Input Connections: 2 four-pin Speakon
Nominal Impedance: 8 ?
Speaker Type: Subs
Frequency Response (-10 dB): 43 - 200 Hz
Internal Crossover: Yes
Recommended High-Pass Frequency: 40 Hz 12 dB/octave
Sensitivity: 1 W/1 m 99 dB
Max. SPL/1m (calc): 131 dB Half Space
System Power Handling (Continuous/Program/Peak): 400//1600 Watts
LF Transducer: 12-inch EVS12SB
Crossover Frequency: 160 Hz
Minimum Impedance: 6 ?
Flying: Optional
Height: 586 mm (23.07")
Width: 429 mm (16.89")
Depth: 312 mm (12.28")
Weight Net: 14.6 kg (32.19 lbs)
- Sb122 performance with enhanced weather-resistance
- Low-pass filter for parallel connection without added amp
- Large vent for enhanced LF output
- Cast-frame EVS12SB long-excursion woofer
- Power handling: 400 W continuous, 1600 W peak
- Parallel Neutrik Speakon high current input connectors
- Strong, composite trapezoidal enclosure
- Pole mount on top for pairing with Zx1
- Integral handle
