Description

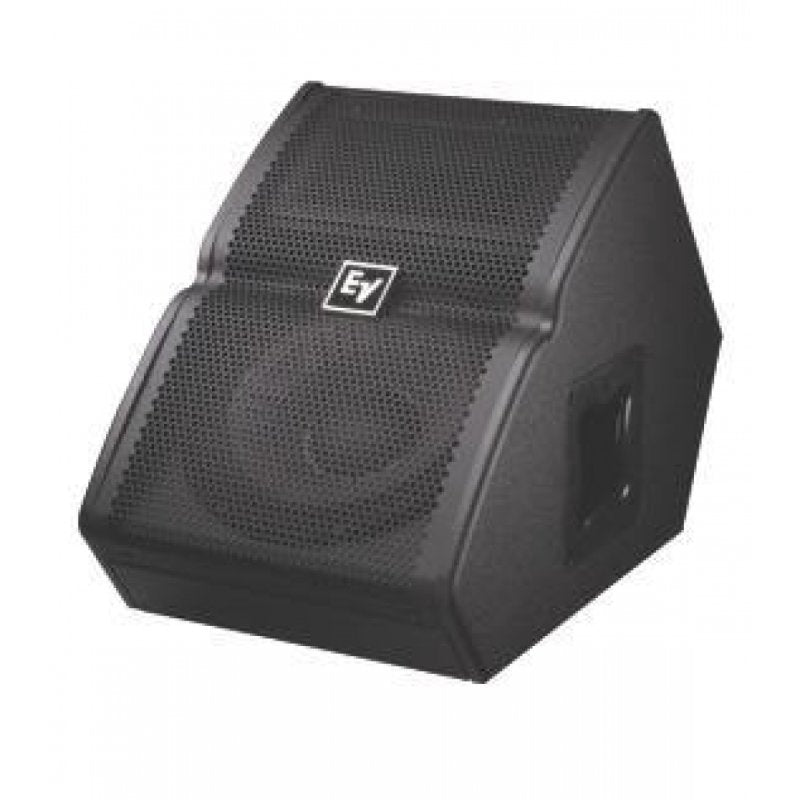

With an undeniable combination of functional good looks, compact design and engineering breakthroughs, Tour X FM monitors will redefine the world of stage monitors for years to come.
Color: Black
Input Connections: Parallel Neutrik® NL4
Speaker Type: Fullrange
Frequency Response (-3 dB): 70 - 20000 Hz
Frequency Response (-10 dB) :55 - 20000 Hz
Internal Crossover: Yes
Recommended High-Pass Frequency: 60 Hz
Sensitivity 1 W/1 m: 99 dB
Max. SPL/1m (calc): 132 dB
Coverage (Nominal -6 dB) H: 90 °
Coverage (Nominal -6 dB) V: 50 °
Rotatable Horn: No
System Power Handling: 500 Watts
LF Transducer: SMX2121
HF Transducer: DH3
Crossover Frequency: 1600 Hz
Nominal Impedance (Passive): 8 ?
Minimum Impedance: 6.4 ?
Enclosure Material: Plywood and MDF with EVCOAT
Flying: No
Height: 440 mm (17.32")
Width: 364 mm (14.33")
Depth: 573 mm (22.56")
Weight Net: 19.8 kg (43.65 lbs)
- DH3 1.25” (32 mm) diaphragm, 1” (25 mm)-exit pure titanium compression driver
- 55° compact vertical floor monitor with Signal Synchronized Transducers™
- 99 dB sensitivity, 132 dB maximum SPL
- 500 W continuous, 2000 W peak power handling
- 90° x 50° coverage pattern
- SMX2121 12” (305 mm) LF transducer with fully symmetric drive
- Integrated crossover with steep 24 dB / octave slopes and HF protection
