Description

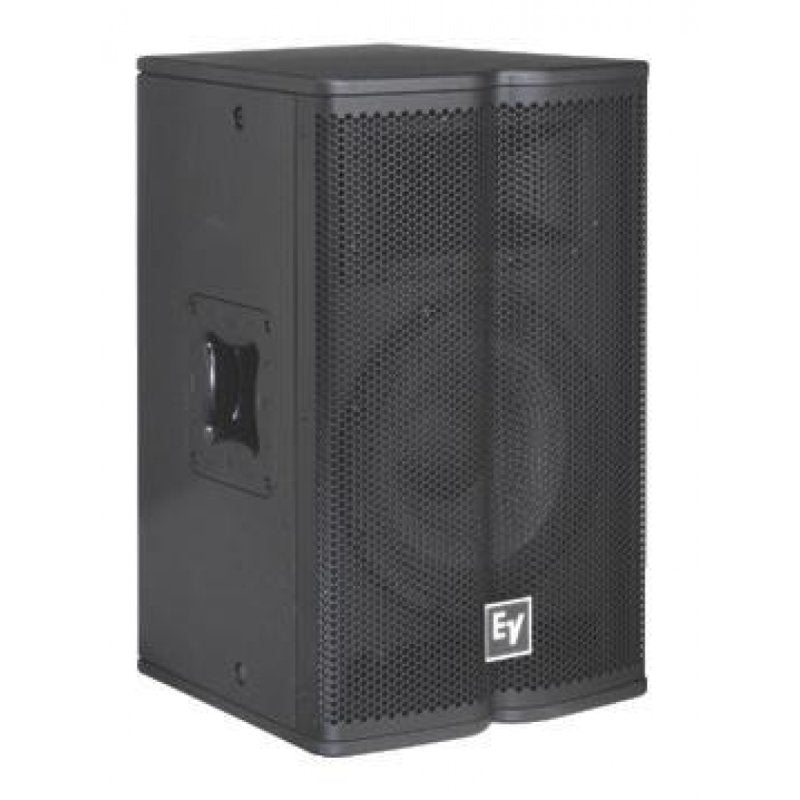

Employing the same space-saving, 90 x 50 horn as the FM models and the incredibly low-distortion SMX2120 12“ woofer, the TX1122 will astound you with performance that blows away ordinary 15“, two-way loudspeakers.
Color: Black
Input Connections: Parallel Neutrik® NL4
Speaker Type: Fullrange
Frequency Response (-3 dB): 60 - 20000 Hz
Frequency Response (-10 dB): 45 - 20000 Hz
Internal Crossover: Yes
Recommended High-Pass Frequency: 45 Hz
Sensitivity: 1 W/1 m 97 dB
Max. SPL/1m (calc): 130 dB
Coverage (Nominal -6 dB) H: 90 °
Coverage (Nominal -6 dB) V: 50 °
Rotatable Horn: No
System Power Handling: 500 Watts
LF Transducer: SMX2120
HF Transducer: DH3
Crossover Frequency: 1750 Hz
Nominal Impedance (Passive): 8 ?
Minimum Impedance: 5.4 ?
Enclosure Material: Plywood and MDF with EVCOAT
Flying: Yes
Suspension: (6) 3/8-inch threaded inserts
Height: 616 mm (24.25")
Width: 382 mm (15.04")
Depth: 380 mm (14.96")
Weight Net: 20.2 kg (44.53 lbs)
- DH3 1.25” (32 mm) diaphragm, 1” (25 mm)-exit pure titanium compression driver
- Advanced fourth-order crossover with HF protection
- SMX2120 12” (305 mm) LF transducer with fully symmetric drive
- 500 W continuous, 2000 W peak power handling
- Pole mount for tripod use
- Six 3/8” threaded points for suspension
- 90° x 50° coverage pattern
- 97 dB sensitivity, 130 dB maximum SPL
